GDHCN Trustlists

This specification describes the publication of Global Digital Health Certification Network (GDHCN) key material as Decentralized Identifier (DID) documents. DIDs are specified by the W3C DID Core Specification. The DID concept summarizes the core drivers and usage of the DID format in scope of GDHCN.

A key to real interoperability among existing trust networks is to find alignment on trust list formats.

Trustlists 2.0.0

Version 2.0.0 introduces two variants of the trust lists - embedded and by reference.

For each of development (DEV), user-acceptence testing (UAT) and production (PROD) environments there is a trust list according to the following table:

The embedded type of trustlist carries the key material directly within the DID documents’ verificationMethod property and supports immediate verification. On the root level it contains all keys imported from the trust network gateway (TNG).

The reference type lists link other DID documents, which may contain the actual key material. Therefore reference type trustlists contain only DID ids that can be used to resolve DID documents. This helps to keep the main trustlist documents concise and supports dynamic discovery of DID structures and key material.

DID trustlists structure

Version 2.0.0 introduces a hierarchical structure for DID documents, to support more fine grained resolution and discovery of key material. These DID documents are parameterized by the following according to the levels in the following table.

The levels are organized hierarchically so that they function as filters following an AND logic operation when resolving or discovering key material. Note that “-“ character can be used as a wildcard on each sublevel of root. This allows to omit filtering on the respective level effectively matching all content of that level.

The following examples outline the expected behavior of embedded trustlist:

• tng-cdn.who.int/v2/trustlist/did.json matches all keys for all $domains, $participants and key $usage types.
• tng-cdn.who.int/v2/trustlist/$domain/$participant/did.json matches all key $usage types for a specific $domain AND $participant.
• tng-cdn.who.int/v2/trustlist/-/$participant/did.json matches all key $usage types across all $domains for a specific $participant.
• tng-cdn.who.int/v2/trustlist/$domain/$participant/$usage/did.json matches all keys for a specific key $usage type for a given $domain AND $participant.
• tng-cdn.who.int/v2/trustlist/-/$participant/did.json matches key material or references for all $domains for a specific $participant without filtering the key usage types.
• tng-cdn.who.int/v2/trustlist/-/$participant/$usage/did.json matches keys or references in all $domains for a specific $participant and specific key $usage type.
• tng-cdn.who.int/v2/trustlist/$domain/-/$usage/did.json matches keys for all $participants of a specific $domain filtered by there key $usage type.
• tng-cdn-who.int/v2/trustlist/-/- matches key material for all $domains and all $participants without filtering a specific $usage type so the did.json may contain SCA and DSC keys.

And the following examples outline the expected behavior of reference type trustlist:

• tng-cdn.who.int/v2/trustlist-ref/did.json contains all DID document references of the next sub-level as DID id.
• tng-cdn.who.int/v2/trustlist-ref/$domain/did.json contains all $participant level DID document references as DID id for the given $domain.
• tng-cdn.who.int/v2/trustlist-ref/$domain/$partcipant/did.json contains all key $usage type level DID document references as DID id for the selected $domain and $participant.
• tng-cdn.who.int/v2/trustlist-ref/$domain/$participant/$usage/did.json contains a reference to a DID the embedded trustlist that correlates to the selected $domain, $participant and key $usage type and that contains the key material.

Note: all levels of the reference type trustlist may contain additional DID references linking trusted external DID documents.

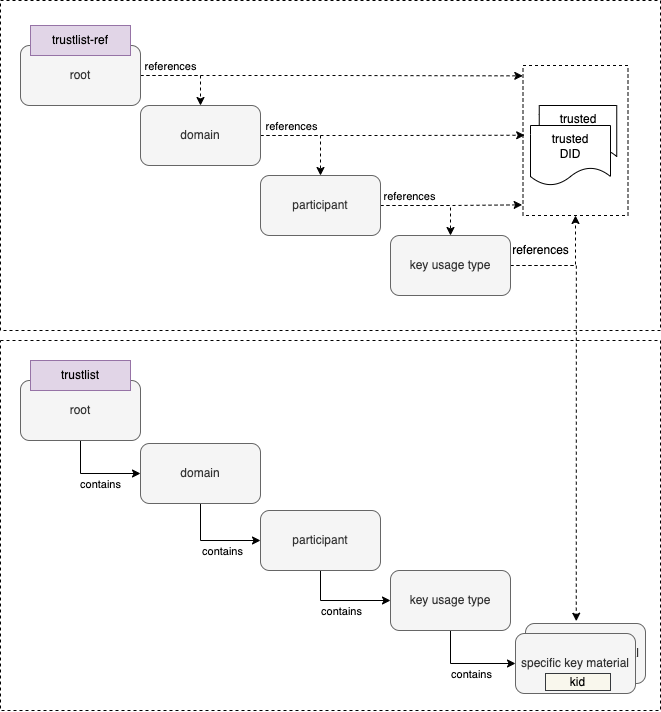

The did trustlists structure diagram depicts the reference and contains relations of the trustlist types for the defined levels.

Example DID documents

Reference type DID document linking the embedded trustlist for $domain: DCC, $participant: XXA and key $usage type: DSC.

{
    "@context": [
        "https://www.w3.org/ns/did/v1",
        "https://w3id.org/security/suites/jws-2020/v1"
    ],
        "id": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist-ref:DCC:XXA:DSC",
        "controller": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist-ref:DCC:XXA",
        "verificationMethod": [
        "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist:DCC:XXA:DSC"
    ],
        "proof": {
        "type": "JsonWebSignature2020",
            "created": "2024-11-10T12:00:35Z",
            "nonce": "SC56sBBcqqTXh0EPdFlaOWDXxSpwupVa",
            "proofPurpose": "assertionMethod",
            "verificationMethod": "did:web:raw.githubusercontent.com:WorldHealthOrganization:tng-participants-dev:main:WHO:signing:DID",
            "jws": "eyJiNjQiOmZhbHNlLCJjcml0IjpbImI2NCJdLCJhbGciOiJFUzI1NiJ9..MEQCICxoXFEI-o0SupgO0U5BhKjRI1AZaAtAtw_byQMgLm6CAiBTtyJYF7ZMgWTlmivMv5A4In3K6LBEF0AXiCYM2VSSIg"
    }
}

Embedded trustlist for $domain: DCC, $participant: XXA and key $usage type: DSC with key matrial:

{
  "@context": [
    "https://www.w3.org/ns/did/v1",
    "https://w3id.org/security/suites/jws-2020/v1"
  ],
  "id": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist:DCC:XXA:DSC",
  "controller": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist:DCC:XXA",
  "verificationMethod": [
    {
      "id": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist:DCC:XXA:DSC#XPjhL9Znd1M=",
      "type": "JsonWebKey2020",
      "controller": "did:web:worldhealthorganization.github.io:tng-cdn-dev:v2:trustlist:DCC:XXA",
      "publicKeyJwk": {
        "kty": "EC",
        "kid": "XPjhL9Znd1M=",
        "x5c": [
          "MIICuTCCAmCgAwIBAgIUD9k1Q64Eav5r07DQ4Gff/7h7r6QwCgYIKoZIzj0EAwIwdDELMAkGA1UEBhMCWEExFDASBgNVBAgMC1hYQSBDb3VudHJ5MRgwFgYDVQQHDA9YQSBDYXBpdG9sIENpdHkxDDAKBgNVBAoMA1dITzEMMAoGA1UECwwDUiZEMRkwFwYDVQQDDBBOYXRpb25YQV9UTlBfU0NBMB4XDTI0MDgwMjEzNDM0M1oXDTI2MDgwMjEzNDM0M1owfzELMAkGA1UEBhMCWEExFDASBgNVBAgMC1hYQSBDb3VudHJ5MRgwFgYDVQQHDA9YQSBDYXBpdG9sIENpdHkxDDAKBgNVBAoMA1dITzEMMAoGA1UECwwDUiZEMSQwIgYDVQQDDBtIZWFsdGggQWRtaW5pc3RyYXRpb24gb2YgWEEwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAT3TVbWYsSYYarCUv8sfvmv2y0GjDEI+PAkm/92na/zAOoV8O2w7rov/Txk3wwz/jMoKvx+IgSfYoyygtGetYEdo4HEMIHBMA4GA1UdDwEB/wQEAwIHgDAdBgNVHQ4EFgQUhjRj4qGi0+rt7ka7GLiol6q2+78wHwYDVR0jBBgwFoAUoir+zkKsSL7OkG8dPyThX49GLtEwPQYDVR0fBDYwNDAyoDCgLoYsaHR0cDovL2NybC5leGFtcGxlZG9tYWluLmV4YW1wbGUvQ1JML1NDQS5jcmwwMAYDVR0lBCkwJwYLKwYBBAGON49lAQEGCysGAQQBjjePZQECBgsrBgEEAY43j2UBAzAKBggqhkjOPQQDAgNHADBEAiATU7uopFD4U3mLHHQn+0ncg4gb5ZazhhrXMXwzAD4NbgIgd3jcskFPyOoBGut8oyXu+nKYKr5zFCqmXkYlILqCo6Q=",
          "MIICMDCCAdWgAwIBAgIUFqWc0xbrcpAettDF8gEymTzDtSkwCgYIKoZIzj0EAwIwdDELMAkGA1UEBhMCWEExFDASBgNVBAgMC1hYQSBDb3VudHJ5MRgwFgYDVQQHDA9YQSBDYXBpdG9sIENpdHkxDDAKBgNVBAoMA1dITzEMMAoGA1UECwwDUiZEMRkwFwYDVQQDDBBOYXRpb25YQV9UTlBfU0NBMB4XDTI0MDgwMjA3MTY0MVoXDTI4MDgwMjA3MTY0MVowdDELMAkGA1UEBhMCWEExFDASBgNVBAgMC1hYQSBDb3VudHJ5MRgwFgYDVQQHDA9YQSBDYXBpdG9sIENpdHkxDDAKBgNVBAoMA1dITzEMMAoGA1UECwwDUiZEMRkwFwYDVQQDDBBOYXRpb25YQV9UTlBfU0NBMFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEeKTWEuRQ4ftDRaTBA6++wea8ODmEqCLE/nWTcvcX069g3YlWEokVgEIMEumXcez++bcIayhRYDi4itAqd5DmJ6NFMEMwEgYDVR0TAQH/BAgwBgEB/wIBADAOBgNVHQ8BAf8EBAMCAQYwHQYDVR0OBBYEFKIq/s5CrEi+zpBvHT8k4V+PRi7RMAoGCCqGSM49BAMCA0kAMEYCIQC2+Bl6No20L/uSxr4bJSPDAAJ37UhhH52ppOElxB1dqgIhANbn1ZF0DNWYyH+eKBTrY+14zbzhDxlXWh/Go1OM9ZZ/"
        ],
        "crv": "P-256",
        "x": "APdNVtZixJhhqsJS_yx--a_bLQaMMQj48CSb_3adr_MA",
        "y": "AOoV8O2w7rov_Txk3wwz_jMoKvx-IgSfYoyygtGetYEd"
      }
    }
  ],
  "proof": {
    "type": "JsonWebSignature2020",
    "created": "2024-11-10T12:00:21Z",
    "nonce": "Gp3uOuUTNgAFxm31fIjNy7yYt34aOP0g",
    "proofPurpose": "assertionMethod",
    "verificationMethod": "did:web:raw.githubusercontent.com:WorldHealthOrganization:tng-participants-dev:main:WHO:signing:DID",
    "jws": "eyJiNjQiOmZhbHNlLCJjcml0IjpbImI2NCJdLCJhbGciOiJFUzI1NiJ9..MEYCIQD8AbUnGxHgmkqNQTzl6E0ZJocZ0N-vrziFB9-jgRSXbgIhAJUB0Wq5YUJPcywS15JMdoiVJDV_ubWuEZwRnuM5A8QB"
  }
}

Note: Specific keys use base64 encoded key id (kid) as identifier, It is represented as fragments (#) in verification method id and can be resolved using client side filtering.

Environments & Repositories

The trustlists are maintained using GitHub and published via GitHub pages.

Trustlist Specification 1.0.0

Initial specification is deprecated.
